USED – ALLTRA HYPERCISION PLASMA

$135,000.00

USED – ALLTRA HYPERCISION PLASMA

MODEL:  PG14-8 Single Right Hand Tucked Rail
            YEAR:  2013
            SERIAL:  6327

SPECEIFICATIONS:
      Cutting Capacity                                                               8’ x 21’6”
Rail Center                                                                        10’
Clearance width for Down Draft table                             8’4” Base
8’8” Top
Machine Width O/S to O/S                                              13’4”
Safety Isle Both Sides                                                     3’
Overall Width                                                                19’4”
Floor Mount with leveling pads
Wired                                                                                480 3 Phase

ALLtra LCD PC Based CNC Control with ALLtra Enhanced Cutting Features
15″ TFT Color Liquid Crystal Display with USB Industrial Touch Screen
Microsoft Windows XP Embedded Operating System
40G Solid State Hard Drive, Dual Core 2.6 processor, 1 GHz Memory
4 – USB 2.0 Ports, 3rd Axis Control, 50 Shape Library
Graphically monitors cutter path, Graphic Automatic Plate Alignment
Dynamic Instant Kerf Compensation
Create/Edit Program (MDI)
Program Scaling, Program Mirror Imaging, Program Rotation
Code Conversion – Converts DXF files into Machine Codes
Network Ready Direct Ethernet Connection/Internet Connectivity
Companion BE – Simple Auto Nesting with Remnant Digitize inbedded in the Control
Operators Console – *Left Hand Control – 30 Degree Offset
CNC Mounting Bracket
AC Brushless Servo System with dual lower axis rack and pinion drives
High Precision Bosch/Rexroth Sercos AC Brushless Servo Drive System
Sercos Digital Control of all three drive axis
600 IPM (1000 IPM upon request)
Motors are direct coupled to Alpha high precision planetary gear reducer
Dual Linear Ways Y Axis Only – Manual Torch Spacing – BELLOWS
Heavy Duty Master Carriages & Powertrack for Plasma
ALL POWERTRACK ON THIS GANTRY TO BE THE ENCLOSED IGUS POWERTRACK
Machine power disconnect / transformer – 230/460 volt 3 Phase
Air Manifold and Filter/Regulator
Laser Pointer – for Torch/Plate Positioning
Gantry Heat Shield for Heat Protection While Cutting Heavy Plate

PLASMA MACHINE ( 400 Amp HyPerformance Plasma System)

ALLTRA LHC PLASMA HEIGHT CONTROL
ALLtra Fully Integrated Height Control Station for X – Y Tables

POWERTRACK
1 EA. IGUS® Composite Power Track for Upper Left Hand Side, load from Front of Machine. Provision for Plasma and Oxyfuel hoses and cables

*NESTING SOFTWARE – OFF LINE – (PRONEST REQUIRED FOR HYPERTHERM TRUE HOLE)

DOWN DRAFT TABLE
ALLtra Damper Design, Single Winged Downdraft Table(Right Hand Wing)
8′ 4″ Wide Base, 8′ 8″ Top x 22′ 6″ Long , Cut Capacity – 8′ 0″ x 21′ 6″
32″ Cutting Height (Grate Top)

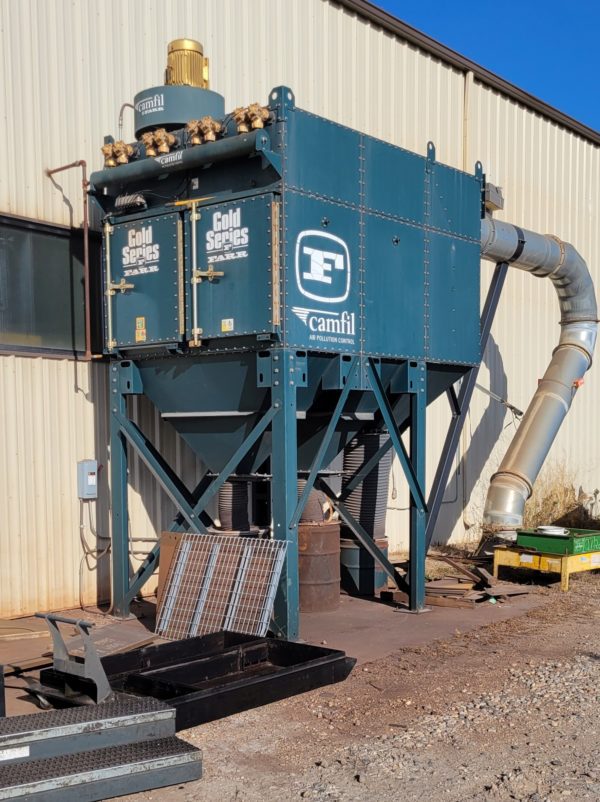

DUST COLLECTOR – Not Suitable for Flammable Dusts
FARR GS16 – Gold Series Modular Dust Collector
Low Pro 7,200 cfm @ 10.0″ SP, 20″ Duct

COMPLETE SYSTEM Can be seen underpower.
