USED – CSM Tube Bender

$49,000.00

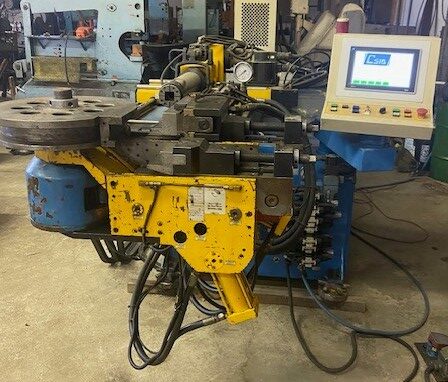

USED – CSM Tube Bender

CSM HYDRUALIC MULTIPLE PLANE CNC TUBE BENDER
With Extended Mandrel Length

MODEL:  CNC 50TSRJ
SERIAL:  001223
YEAR:  2003

Automatic bender type TSRJ is intended for 3D bending of tubes by one bending tool. The bending arm (C axis) is controlled by a hydraulic drive as well as the clamping elements while the other drives are controlled by servo drive, Y axis (tube length position) and B axis (tube rotation and support shift). The machine is equipped with automatic mandrel retraction and mandrel lubrication and is operated from a control panel with touch display mounted on a portable stand.

Programable bender software allows for entering data for a complete bending cycle and saved data can be copied and edited while the memory card has storage for 1000 products types.

Hydraulic Bend Arm (C) Axis          Hydraulic Clamp Die                          Hydraulic Pressure Die
Servo driven Y & B Axis                  Automatic Mandrel Lube                   Anticipated Mandrel Retraction
Remote Control Panel                    User Friendly Touch Screen HMI       Data Storage for 1000 jobs
Clamp Boost for x10 bending



SPECIFICATIONS:

Round Tube Square Tube Servo Drive Mandrel Length Tooling Capacity
OD WT CLR OD WT CLR
MM 50.8 3 30-220 40*40 3 30-190 2 2200 1
Inch 2″ 0.12 1.18-8.66 1.57*1.57 0.12 1.18-7.48 86.6″ Standard Mandrel
150″ *Extended Mandrel

Approximate Dimensions:                              18’L x 4’W x 60”H
Approximate Weight                                      5000 lbs

INCLUDED TOOLING:
Square             1-1/4” (1.25433mm) x 6.62 (168.27mm) Radius
Square             1-1/4” x 2.63” (66.67mm) Radius
Round             7/8” (.875195mm) x 1.75” (44.45mm) Radius
Round             1-1/4” (31.75mm) x 4” (101.6mm) Radius
