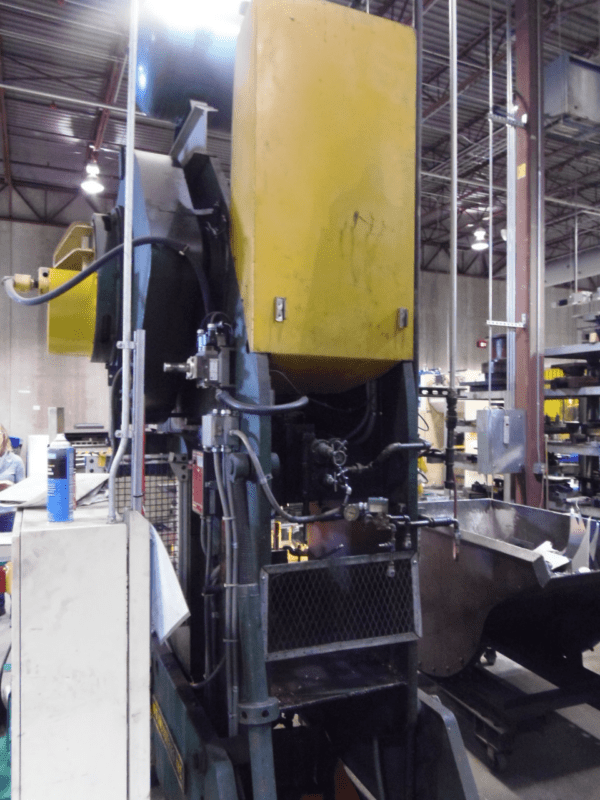

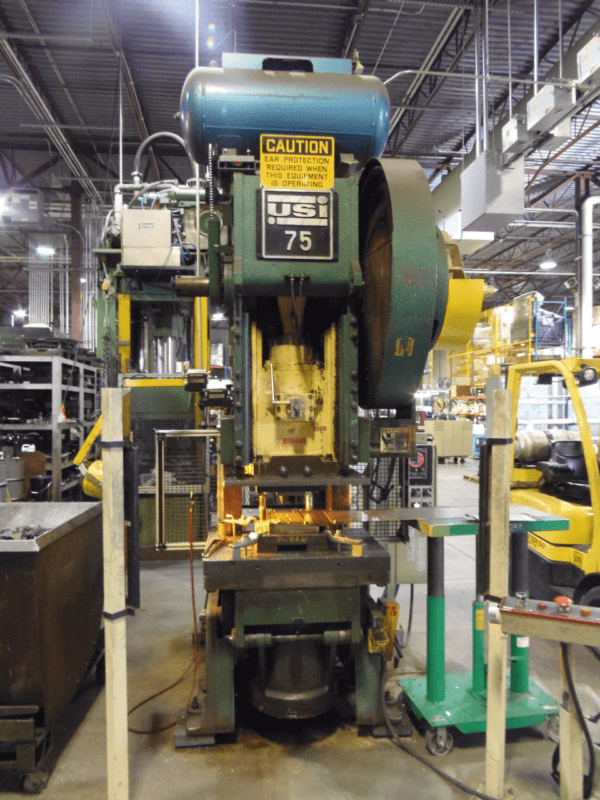

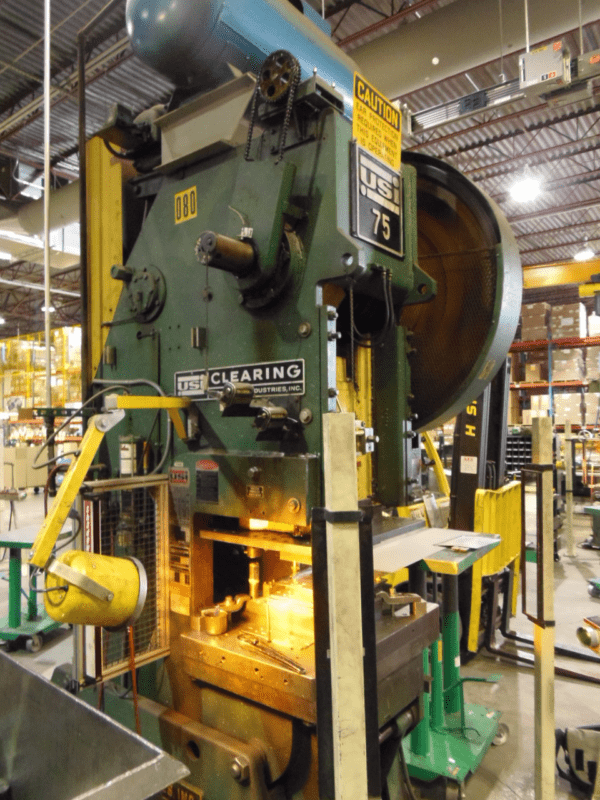

USI Clearing OBI Press

Model:  75 Ton OBI, Flywheel, Single Crank
Year:  1969

Specifications

TONNAGE 75 TONS
STROKE 4″
SHUT HEIGHT 15 3/4″
ADJUSTMENT 3″
STROKES PER MIN 40
WIDTH OF OPENING IN BACK 20 3/4″
THROAT DEPTH 13″
BED AREA 36″ X 25″
BED OPENING (L-R) X (F-B) 17 1/4″ X 14″
DISTANCE BETWEEN GIBS 17 1/2″
FLOOR TO TOP OF BED 34″
BOLSTER PLATE 36″ X 25″ X 3″
WEIGHT (APPROX) 15,000 LBS.
DIMENSIONS 69″ X 66″ X 129″ H
VOLTAGE 480V 3 PHASE
EQUIPPED WITH:
WINTRISS WPC 2000 CLUTCH/BRAKE CONTROL
SHADOW VII SAFETY LIGHT CURTAIN
CUSHION
SINGLE GEARED PRESS WITH FRICTION CLUTCH
DUAL PALM BUTTONS
BOX TYPE SLIDE
BARREL-TYPE SLIDE ADJUSTMENT
SPECIFICATIONS SUBJECT TO VERIFICATION
