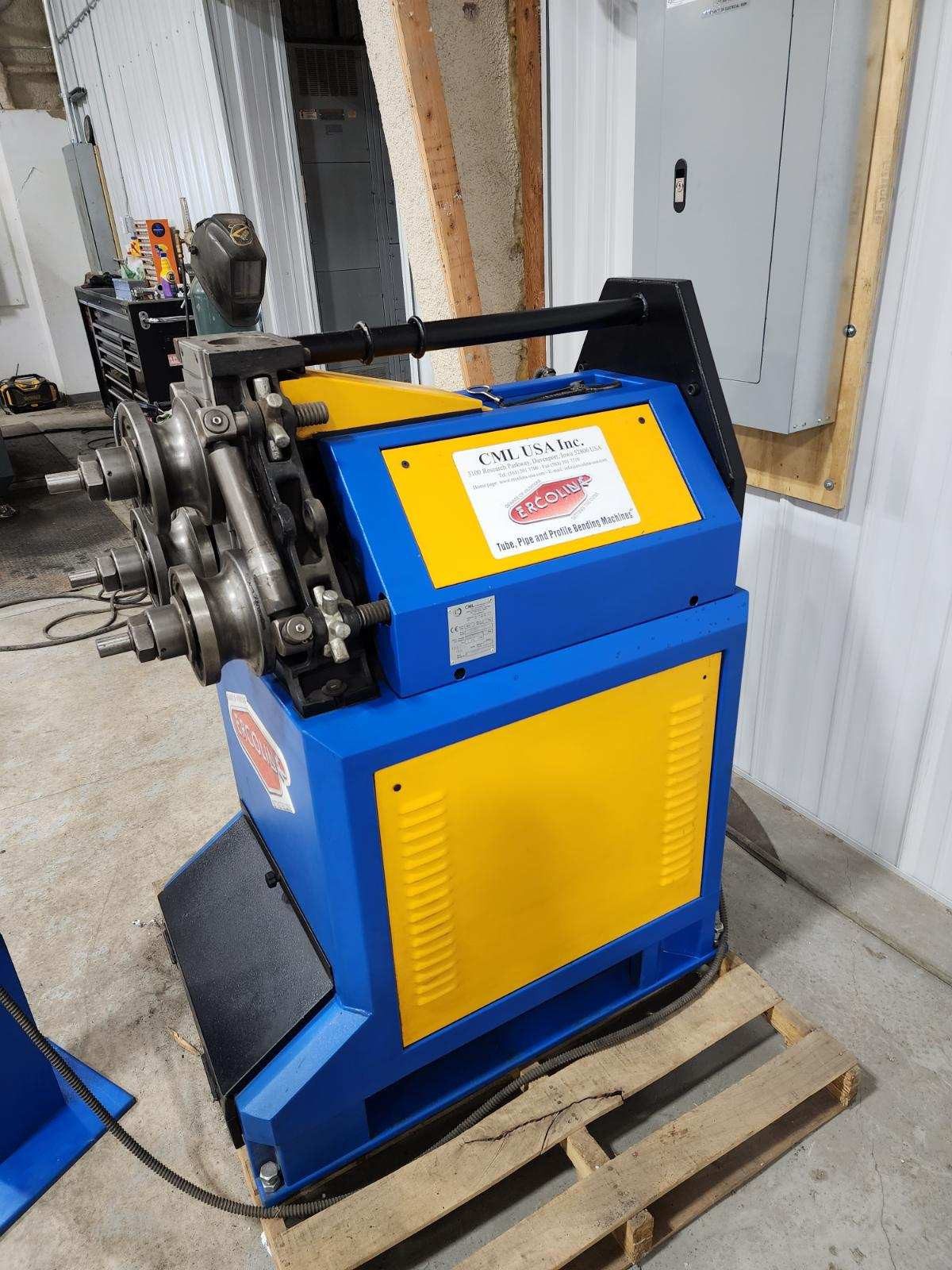

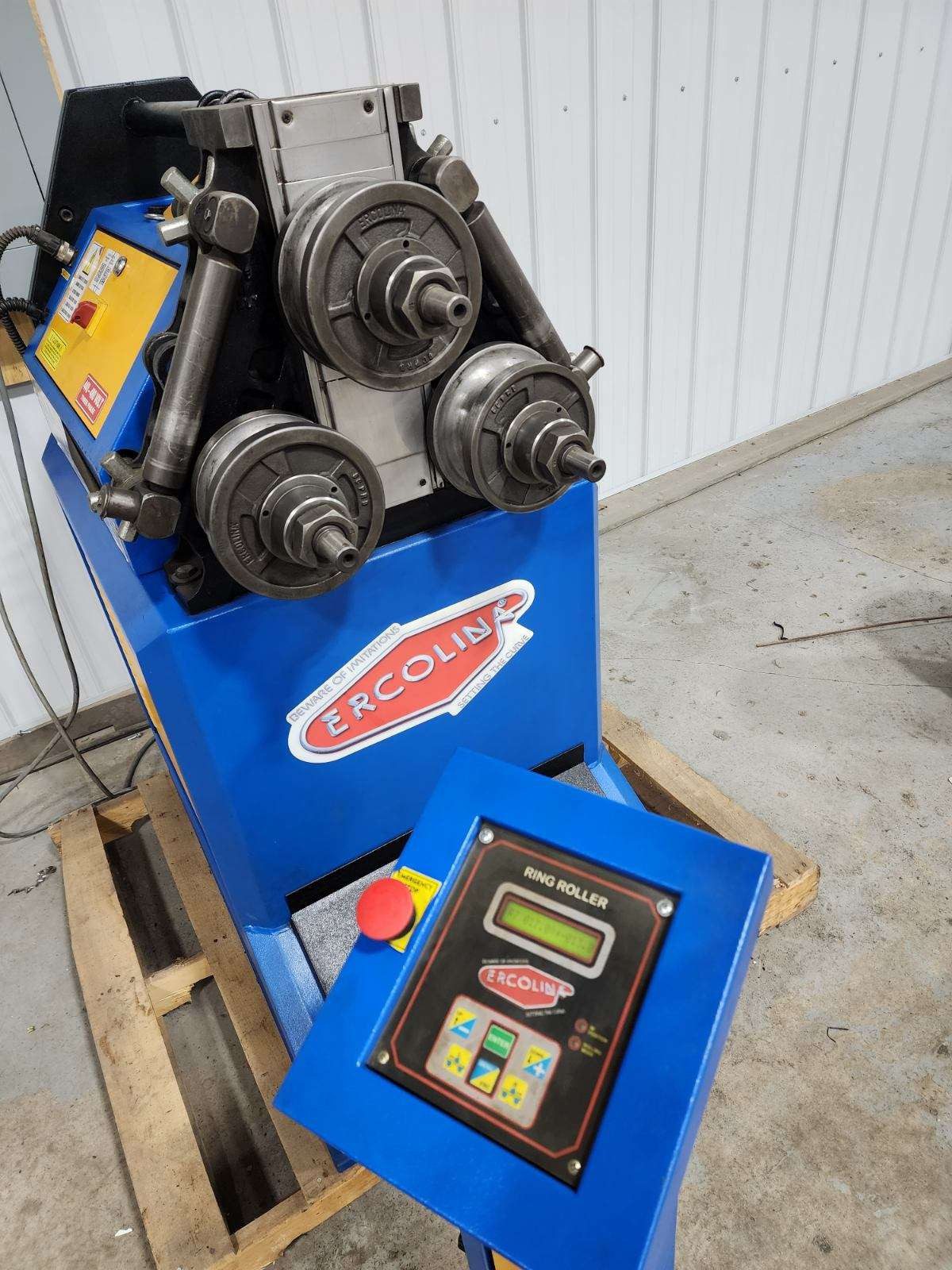

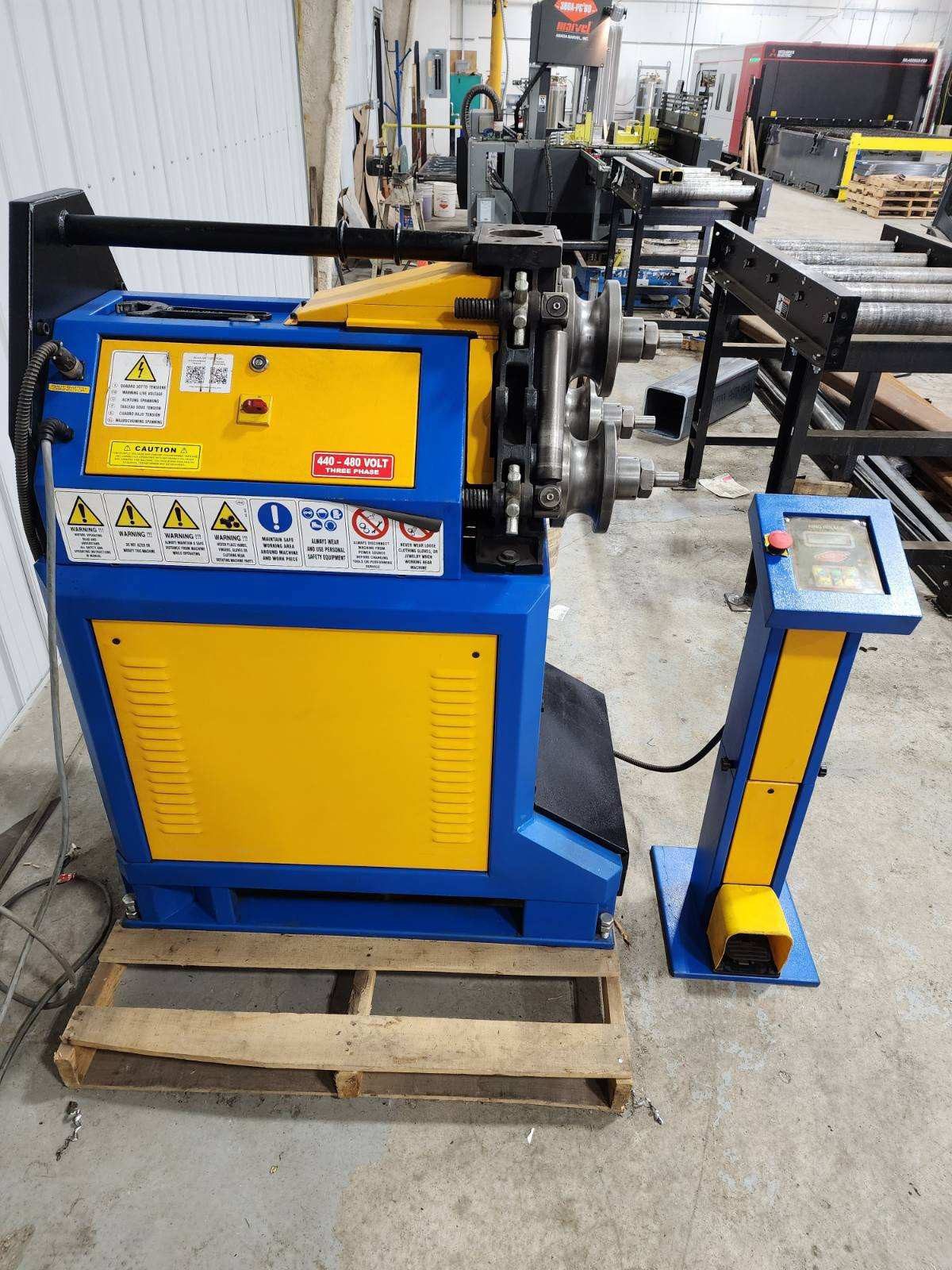

USED – ERCOLINA SECTION ROLL

MODEL: CE40H3
YEAR: 2018
SERIAL: 0218055

SPECIFICATIONS:
Capacities
Pipe (Max)                                                 2” Sch. 40
Angle (Max)                                               2” x 2” x ¼”
Tube (Max)                                                2-1/2” – .125 wall
Roll Shaft Diameter                                        40mm
Center Roll Positioning                                  Hydraulic 10 Ton
Shaft Speed                                                   10 RPM
Tooling (Included)                                          2” Tube
Programming                                                 NC – Touchpad
Distance between Shafts                               10-5/8”
Operating Voltage                                          480V 3 Phase
Dimensions                                                    39”L x 26”W x 59”H
