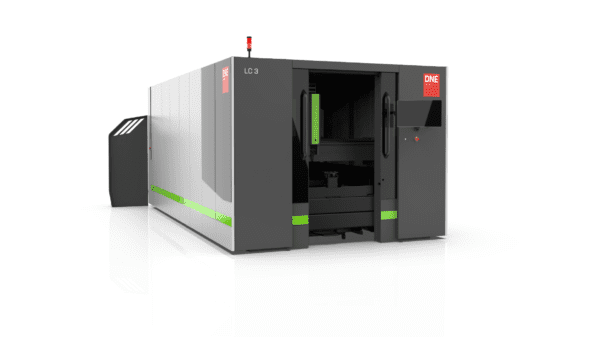

DNE LC 3
Fast and reliable laser cutting machine for more profit per part Powerful laser output of up to 6 kilowatts Maximum operating convenience Attractive price-performance ratio The smart way to process sheet metal Combining industry-leading value with the quality (and reliability) of Swiss engineering, our LC 3 fiber laser cutting machine offers you all the performance and speed you will need to succeed in the sheet metal processing business.
- Local service support and parts availability – fast response time, proven components
- State-of-the-art technology based on Swiss expertise
- Set a benchmark in terms of programming
Machine configuration ready to cut: Basic Scope:
- 21.5” Touchscreen Monitor
- SSD (Solid State Hard Drive) – USB & Ethernet Interface
- Wireless Hand Held Control
- Interior LED Lighting
- DNE PowerCAM Software
- DNE Vision Cutting / Motion Cutting
- Laser Power Choices: 2000, 3000, 4000, 6000W
- Cutting Head
- Chiller
- One Year Warranty or 2000 Hours (whichever comes first)
Options: Dust Extraction – Donaldson 2nd High Pressure channel SPECIFICATIONS
| Length | 34′ 8″ ft/in |
| Width | 19′ 5″ ft/in |
| Height | 9′ 0″ ft/in |
| Nominal sheet size | 120 in x 60 in |
| Cutting area X, Y, Z | 122 in, 62 in, 4 in |
| Max. positioning speed parallel axis X/Y | 3937 in/min |
| Max. simultaneous positioning speed | 5511 in/min |
| Bilateral repeatability of positioning of one axis R (following ISO 230-2:2014(E)) | ± 0.002 in |
| Averaged, bilateral position deviation of one axis M (following ISO 230-2:2014(E)) | ± 0.004 in |
| Edge detection accuracy | ± 0.019 |
| Max. workpiece weight | 1984 lb |
| Machine weight | 26015 lb |
| Table changeover time | 24 s |
| Power | 6000 W |
| Polarization | Unpolarized |
| Wavelength | 1 μm |
| Pulse frequency | 1 – 2500 HZ |
| Maximum sheet thicknesses: Steel, Stainless steel, Aluminum | 0.750 in |
| Maximum sheet thicknesses: Brass, Copper | 0.375 in |
| Total electrical consumption of system | 29 kW |
